Features of maize flour mill line:
1. Dry milling technology save labor work.
2. Fully atomatic with high performance.
3. Easy operation and mantainence and energy saving.
4. High output rate of final products.
5. Installation, staff training service.
6. Reasonable price.
This is the commercial maize flour milling processing machine,It include:
Cleaning-- conditioning-- degerminating--milling--sifting-- packing
1. Cleaning system: when buying the maize, normally the maize is very dirty in Africa countries. So before processing, need to cleaning first.In the maize there is many kind of impurity, like stone, iron, rope, plastic etc. So according this we use maize drum sifter/maize cleaner/maize destoner etc machines to cleaning the maize.
2. Degerminating system: After cleaning the maize, before degerminating, first need the moisture the maize and let the maize sleep in the moisture bin for 2-10 hours according the different request, then go to the maize degerminator, the degerminator can scrub the maize skin from maize kernel and dislodge the germ from its cavity with the minimum reduction in size of broken fragments.
3. Milling system: The process of manufacturing the products involves three fundamental sub-processes. Firstly, physically detaches the three components of the maize kernel from each other with as little dilution or mixing as possible. Secondly, sorts and classifies the detached particles into specific groups and the last, sizes and reduces the particles to the required granularity. The three components are then recombined as necessary depending on the type of finished product required. The aim of the process then, is to detach the bran and germ from the maize kernels with a minimum disintegration of either the endosperm or the bran/ germ casing. The pure endosperm is then gradually reduced in size to form products of different granularity, ranging from the relatively large pieces of samp to the very Fine maize flour.
4. Packing system: Maize flour packaging machine can packing with different kind of bags, like 1kg/2kg/5kg/10kg/25kg/50kg.
Features of maize flour mill line:
1. Dry milling technology save labor work.
2. Fully atomatic with high performance.
3. Easy operation and mantainence and energy saving.
4. High output rate of final products.
5. Installation, staff training service.
6. Reasonable price.
This is the commercial maize flour milling processing machine,It include:
Cleaning-- conditioning-- degerminating--milling--sifting-- packing
1. Cleaning system: when buying the maize, normally the maize is very dirty in Africa countries. So before processing, need to cleaning first.In the maize there is many kind of impurity, like stone, iron, rope, plastic etc. So according this we use maize drum sifter/maize cleaner/maize destoner etc machines to cleaning the maize.
2. Degerminating system: After cleaning the maize, before degerminating, first need the moisture the maize and let the maize sleep in the moisture bin for 2-10 hours according the different request, then go to the maize degerminator, the degerminator can scrub the maize skin from maize kernel and dislodge the germ from its cavity with the minimum reduction in size of broken fragments.
3. Milling system: The process of manufacturing the products involves three fundamental sub-processes. Firstly, physically detaches the three components of the maize kernel from each other with as little dilution or mixing as possible. Secondly, sorts and classifies the detached particles into specific groups and the last, sizes and reduces the particles to the required granularity. The three components are then recombined as necessary depending on the type of finished product required. The aim of the process then, is to detach the bran and germ from the maize kernels with a minimum disintegration of either the endosperm or the bran/ germ casing. The pure endosperm is then gradually reduced in size to form products of different granularity, ranging from the relatively large pieces of samp to the very Fine maize flour.
4. Packing system: Maize flour packaging machine can packing with different kind of bags, like 1kg/2kg/5kg/10kg/25kg/50kg.
SHIJIAZHUANG AFRICA TRADING CO., LTD
PROFESSIONAL MANUFACTURER---MAIZE MILL/WHEAT MILL
WhatsApp: +86 1367 3181 716 Email: helen@hdfmill.com
150T/24h
wheat flour
milling machine
150 T/24H
WHEAT FLOUR MILL
The parameter of the 150 ton/day wheat flour milling machinery
Total length of the roller:16000mm
Capacity（wheat/24h）: 150T/24h
Flour extraction: To produce standard flour:75-82%
To produce grade 2flour: 72-75%
To produce grade 1flour: 70-72%
Power supply:Circa 561kW
Total weight of the equipment : 81T
Container: 40’×8
Capacity: processing 150 tons wheat per 24 hours
This machine is a complete production line including cleaning, milling, packing and controlling systems.
The raw material is wheat and the final product is super fine wheat flour for making bread, cake, biscuits and so on.
Specifications of wheat mill plant:
1. Input wheat –wheat cleaner– wheat moisture dampener–roller mill–plansifter–good quality flour –packing
2.The control system: Control panel control or PLC control

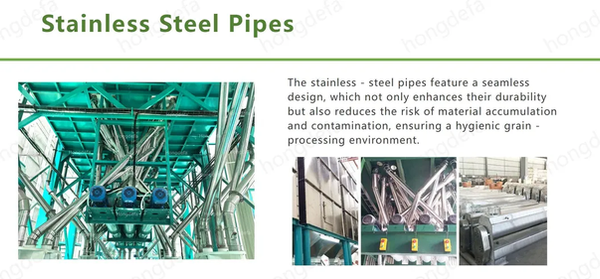

3.Pipe in milling section is stainless steel
4.auto-roller mill and plansifter
5.European Condition dampener
1. Technical for cleaning system:
Three sieves，two beating，two removing stone, three magnetic selecting ,one moisture temper.
2. Technical for flour system:
Six roller mills, five FSF J2*12*83 double sifter sieves, one FSFJ1*83 single sifter sieve make up of 4B, 6M, 1S and 2 bran brusher.
_JPG.jpg)
_JPG.jpg)
_JPG.jpg)
_JPG.jpg)
_JPG.jpg)
